F4 compensator (expansion joint)
Use range:Used to eliminate pipeline, container or equipment due to climate change caused by stretching or for other reasons which led to the expansion or displacement; as a slow vibration sensor, installed in the pump or other high-frequency mechanical import and export both ends to reduce or eliminate vibration; used to absorb the design and actual installation of the deviation.
Excellent performance:Solve metal compensator compensate poor, and poor corrosion resistance, reduce business costs, improve production efficiency: working and reliable. Compact body and strong ability to compensate and improve the life of the pipeline.
|

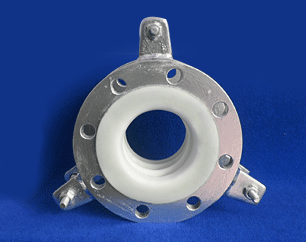

Common F4 compensator
Inside nominal diameter :DN25-1600mm Fatigue time :≥500 times Using temperature:≤200°C |

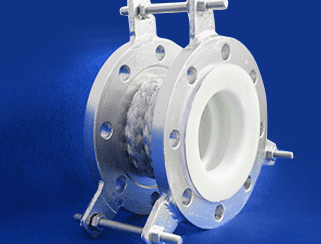

Steel liner F4 compensator
Inside nominal diameter :DN25-1600mm Fatigue time :≥10000 times Using temperature:≤200°C |
 |
 |
|

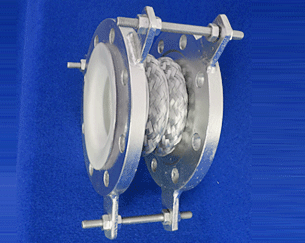

Complex sets of F4 MV network compensator
Inside nominal diameter :DN25-1600mm Fatigue time :≥10000 times Using temperature:≤200°C |
F4-resistant vacuum compensator
Inside nominal diameter :DN25-1000mm Fatigue time :≥10000 times Using temperature:≤200°C Length:L=100-180mm |
 |
|
| Design Spec | Face to face | Flange ends | Testand inspection | Marking | Supply |
| HG/T3985-2007 | enterprise standard | HG/T20592-2009 | HG/T3985-2009 | HG/T3985-2009 | HG/T3985-2009 |
Main component material
|
No.
|
Name of parts
|
Gary cast iron
|
Cast stel
|
Stainless acid
resistant cast steel |
Stainless acid
resistant cast steel |
||
|
Z
|
C
|
P
|
R
|
PL
|
RL
|
||
|
1
|
sylphon bellowssBellows
|
Stainless steel
|
|||||
|
2
|
Flange
|
Carbon steel,Stainless steel
|
|||||
|
3
|
Boll
|
Carbon steel,Stainless steel
|
|||||
|
4
|
Nut
|
Carbon steel,Stainless steel
|
|||||
|
5
|
Lined
|
Fluoro plastic
|
|||||
F4 compensator（expansion joint） specification
|
( DN)
|
(wave) |
Length
（mm） |
Allow compensation
( ±△×) (mm) |
Radial deflection
b ( mm) |
Rotation angleа
( degree) |
Pressure
|
||
|
Negative pressure resistance
|
Positive pressure
|
|||||||
|
A
|
B
|
|||||||
|
DN15
|
3
|
70
|
8
|
6
|
20
|
-0.1
|
0.4
|
1.0
|
|
DN20
|
3
|
70
|
10
|
6
|
20
|
-0.1
|
0.4
|
1.0
|
|
DN25
|
3
|
80
|
12
|
8
|
20
|
-0.1
|
0.3
|
0.8
|
|
DN32
|
3
|
80
|
14
|
12
|
20
|
-0.1
|
0.3
|
0.8
|
|
DN40
|
3
|
85
|
17
|
15
|
25
|
-0.1
|
0.3
|
0.8
|
|
DN50
|
3
|
95
|
20
|
20
|
25
|
-0.1
|
0.2
|
0.6
|
|
DN65
|
3
|
110
|
22
|
23
|
30
|
-0.1
|
0.2
|
0.6
|
|
DN80
|
3
|
115
|
24
|
24
|
30
|
-0.1
|
0.2
|
0.6
|
|
DN110
|
3
|
120
|
26
|
25
|
30
|
-0.1
|
0.1
|
0.6
|
|
DN112
|
3
|
130
|
29
|
25
|
30
|
-0.1
|
0.1
|
0.5
|
|
DN115
|
3
|
140
|
32
|
20
|
25
|
-0.1
|
0.1
|
0.5
|
|
DN220
|
3
|
150
|
40
|
20
|
25
|
-0.1
|
0.06
|
0.5
|
|
DN250
|
3
|
160
|
40
|
12
|
15
|
-0.1
|
0.06
|
0.25
|
|
DN300
|
3
|
180
|
40
|
12
|
10
|
-0.1
|
0.06
|
0.25
|
